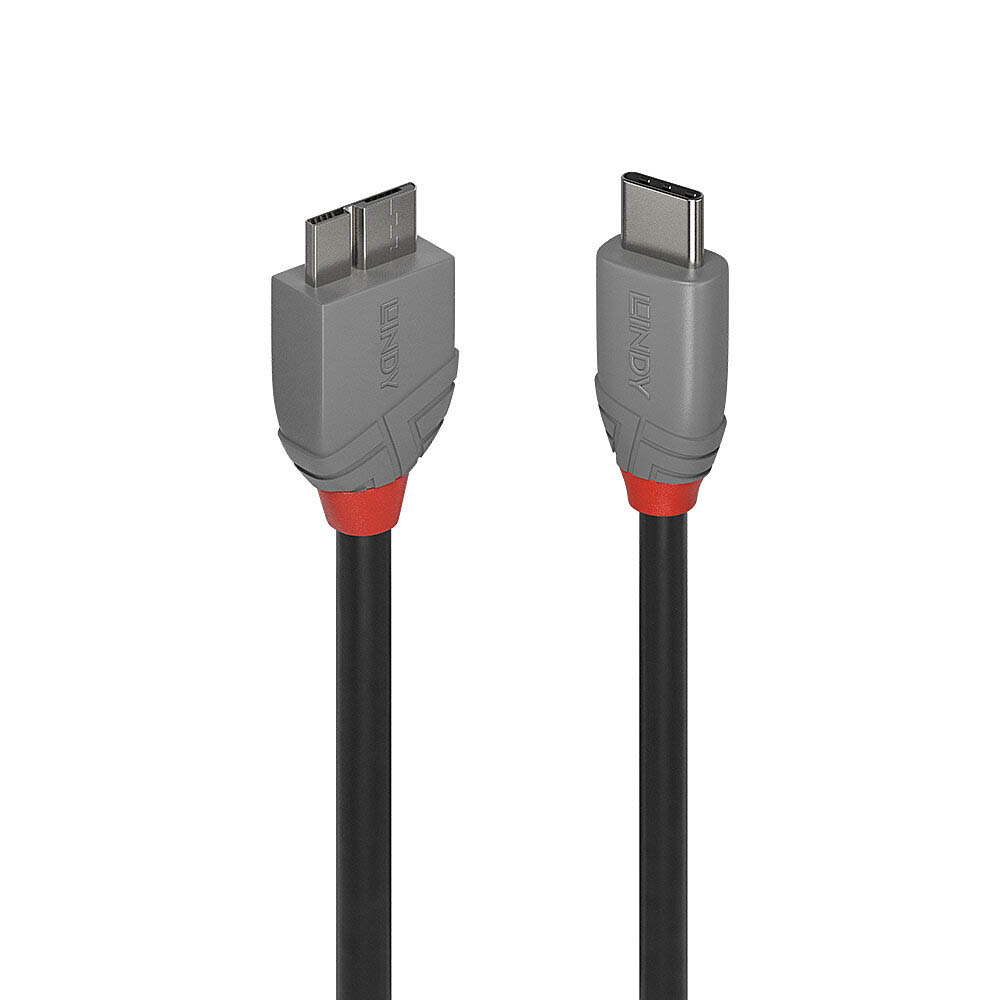

The Anthra Line USB 3.2 Type C to Micro-B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations

• They are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance

• High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability

• USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes

• USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found

• This connector allows a fully bi-directional cable with automatic host and device negotiation

• Anthra Line USB 3.2 Type C to Micro-B cables are available in the following lengths: 0.5m, 1m, 2m and 3m

• Professional choice USB 3.2 Gen 1 Type C to Micro-B cable for commercial and high performance AV and IT installations

• SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)

• Robust PVC housing, gold plated contacts and nickel plated connectors

• Triple shielded cable, corrosion resistant tinned copper conductors

• 10 year warranty

SPECIFICATIONS

• Connectors

• Connector A: USB 3.2 Type C Male

• Connector B: USB 3.2 Type Micro-B Male

• Housing Material: PVC

• Connector Plating: Nickel

• Pin Construction: C: High conductivity copper; Micro-B: Brass

• Pin Plating: Gold

• Cable Construction

• Length: 2m

• Standard: USB 3.2 Gen 1

• Type: Round

• Jacket Diameter: 4.3mm

• Jacket Material: PVC

• Conductor Material: Tinned Copper

• Conductor Gauge Power: 22AWG

• Conductor Gauge Data: 30AWG

• Shielding: Copper Braid 82%

• Shielding in connector head shell: Copper foil

• Supported Bandwidth: 5Gbps

• Maximum Resolution: -

• Nominal Attenuation: 100-2500MHz less than 20dB

• Minimum Band Radius: 25mm

• Operating Temperature: 0 to 40 degree C

• Storage Temperature: 0 to 70 degree C

• Certificated: RoHS, REACH, California Proposition 65, UL

• USB-C Dimension: 10.8(W) x 32(D) x 7.8(H)mm

• Micro-B Dimension: 15.8(W) x 31.8(D) x 7.8(H)mm

• Colour: Black

• Warranty: 10 Years

• OEM: 36622
